Description

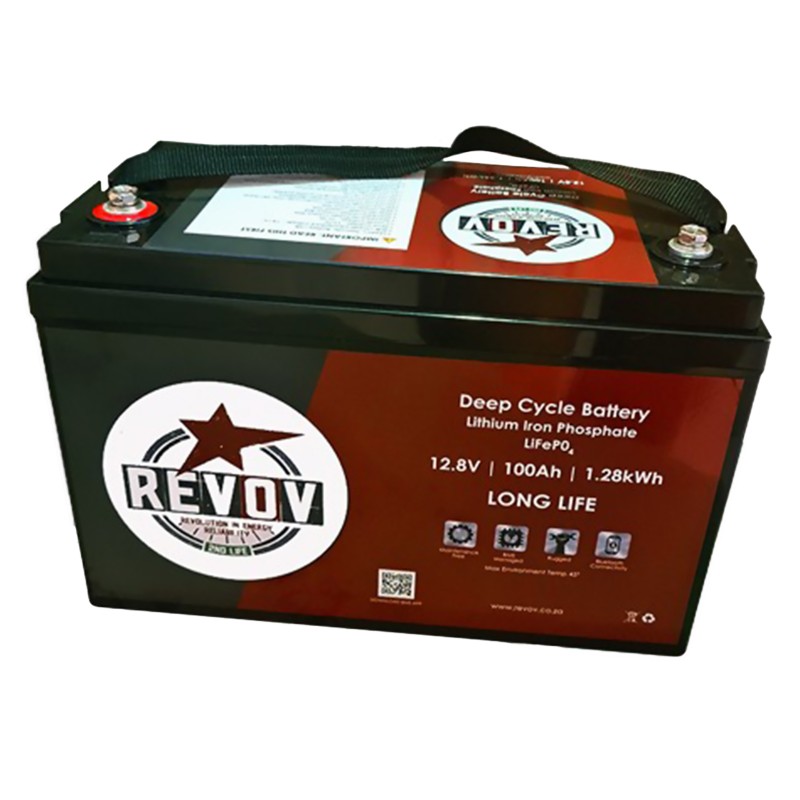

The 12.8V 100 Ah battery is (LiFePO4) chemistry and has an integrated battery management system making it the perfect portable power solution.
Lithium Iron Phosphate battery technology has greater energy density and lifecycle, it is a stable chemistry that maintains a high thermal runaway, resulting in a long life at low costs.
Application
- Camping Equipment companies
- 4×4 enthusiasts
- 24V Backup Systems
Specifications
- Nominal Capacity: 100Ah
- Nominal Energy: 1280Wh
- Nominal Voltage: 12.8V
- End of Discharge Voltage: 11.5V
- Standard Charge Voltage: 14.1±0.2V
- Float Charge Voltage: 13.7V
- Standard Charge Current: 20A
- Recommended Continuous Current: 70A
- Max Discharge Current: 100A
- BMS peak Current: 110A, 0.5Sec
- Internal Resistance: <20mΩ
- Weight: Approx. 9kg, ±5%
- Ex-factory Capacity SOC: Approx. 50% SOC
- Discharge Temperature: -20°C – 60°C
- Charge Temperature (must be reduced at 0°C – 5°C): 0°C – 45°C
- Recommended Storage Environment: 15 – 45°C @ 75% SOC
- Cycle Storage: @ 50% 56C within 6 months
- Dimensions [LxWxH]: 330mm x 170mm x 230mm
Electrical Characteristics & Test Condition
- Nominal Capacity: <100Ah
- Internal Impedance: <40mΩ
- Short Circuit Protection under and over Voltage Protection: Auto Cutoff Load when Short Circuit
